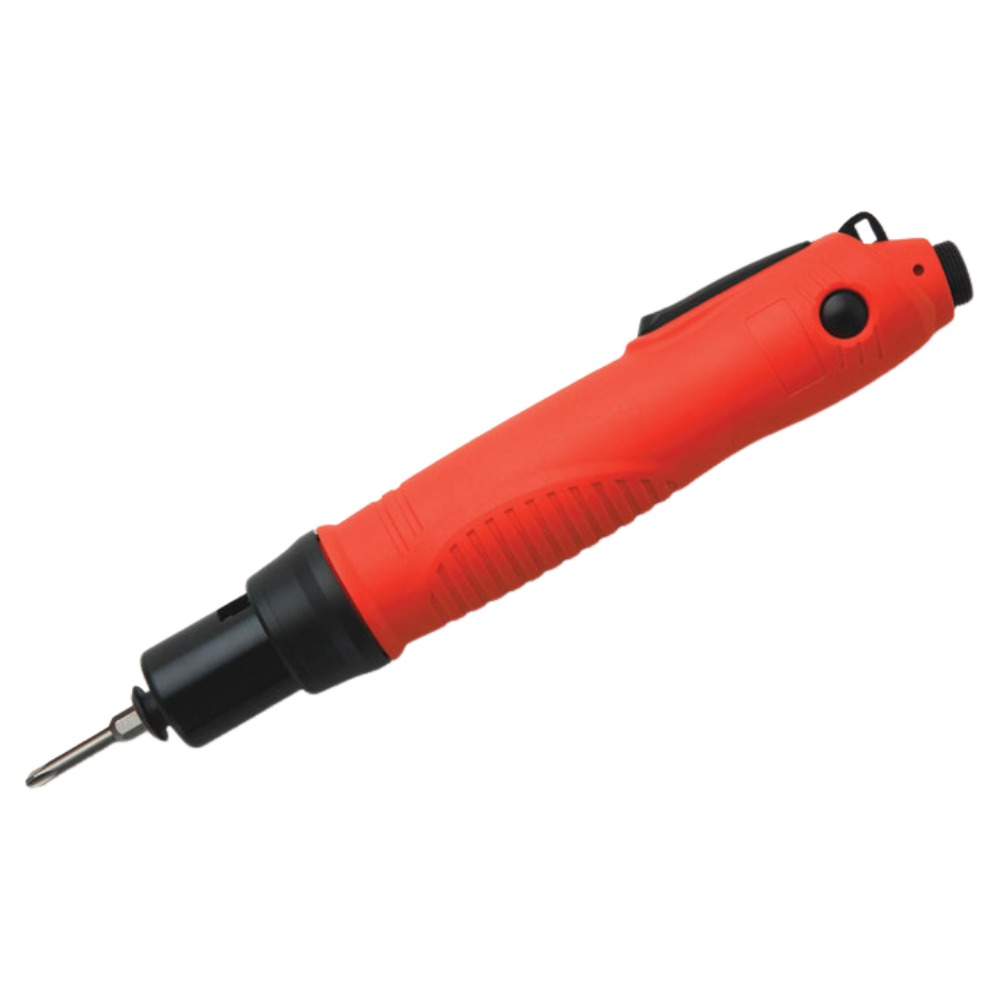

PS-SBL
型號 | 無載轉速 | 重量 | 總長 | 直徑 | 扭力範圍 | 電源 | 扭力 重覆精度 | CPK值(符合 ISO5393要求) | 鎖付能力 | 配件 | ||
機械牙 | 自攻牙 | 起子頭規格 | ||||||||||
r.p.m. | g | mm | mm | Kgf-cm | V(DC) | % | 1/4” | |||||
PS10SBL | 300 | 305 | 207 | 34 | 0.2-2.0 | 12 | ±3 | 1.67 | M1.0-M2.2 | M0.9-M1.7 | #0& #1 | |
PS11SBL | 1000 | 305 | 207 | 34 | 0.2-2.0 | 12 | ±3 | 1.67 | M1.0-M2.2 | M0.9-M1.7 | #0& #1 | |
PS20SBL | 300 | 305 | 207 | 34 | 0.5-5.0 | 12 | ±3 | 1.67 | M1.4-M2.8 | M1.1-M2.3 | #0& #1 | |
PS21SBL | 1000 | 305 | 207 | 34 | 0.5-5.0 | 12 | ±3 | 1.67 | M1.4-M2.8 | M1.1-M2.3 | #0& #1 | |
PS30SBL | 300 | 305 | 207 | 34 | 1.0-10 | 12 | ±3 | 1.67 | M1.7-M3.5 | M1.4-M2.9 | #0& #1 | |
PS31SBL | 1000 | 355 | 207 | 34 | 1.0-10 | 12 | ±3 | 1.67 | M1.7-M3.5 | M1.4-M2.9 | #0& #1 | |
PS32SBL | 1400 | 355 | 207 | 34 | 1.0-10 | 12 | ±3 | 1.67 | M1.7-M3.5 | M1.4-M2.9 | #0& #1 | |
PS33SBL | 650 | 355 | 207 | 34 | 1.0-10 | 12 | ±3 | 1.67 | M1.7-M3.5 | M1.4-M2.9 | #0& #1 | |
PS41SBL | 1000 | 355 | 207 | 34 | 3.0-17 | 12 | ±3 | 1.67 | M2.5-M4.3 | M2.0-M3.4 | #2 | |
PS42SBL | 1400 | 355 | 207 | 34 | 3.0-17 | 12 | ±3 | 1.67 | M2.5-M4.3 | M2.0-M3.4 | #2 | |
PS45SBL | 450 | 355 | 207 | 34 | 5.0-25 | 12 | ±3 | 1.67 | M2.8-M4.8 | M2.3-M3.8 | #2 | |
PS51SBL | 1000 | 355 | 207 | 34 | 5.0-30 | 12 | ±3 | 1.67 | M2.8-M5.0 | M2.3-M4.1 | #2 | |
PS52SBL | 2000 | 355 | 207 | 34 | 5.0-20 | 12 | ±3 | 1.67 | M2.8-M4.5 | M2.3-M3.5 | #2 | |
PS-SBL
型號 | 無載轉速 | 重量 | 總長 | 直徑 | 扭力範圍 | 電源 | 扭力 重覆精度 | CPK值(符合 ISO5393要求) | 鎖付能力 | 配件 | ||
機械牙 | 自攻牙 | 起子頭規格 | ||||||||||
r.p.m. | g | mm | mm | Kgf-cm | V(DC) | % | 1/4” | |||||
PS10SBL | 300 | 305 | 207 | 34 | 0.2-2.0 | 12 | ±3 | 1.67 | M1.0-M2.2 | M0.9-M1.7 | #0& #1 | |
PS11SBL | 1000 | 305 | 207 | 34 | 0.2-2.0 | 12 | ±3 | 1.67 | M1.0-M2.2 | M0.9-M1.7 | #0& #1 | |
PS20SBL | 300 | 305 | 207 | 34 | 0.5-5.0 | 12 | ±3 | 1.67 | M1.4-M2.8 | M1.1-M2.3 | #0& #1 | |
PS21SBL | 1000 | 305 | 207 | 34 | 0.5-5.0 | 12 | ±3 | 1.67 | M1.4-M2.8 | M1.1-M2.3 | #0& #1 | |
PS30SBL | 300 | 305 | 207 | 34 | 1.0-10 | 12 | ±3 | 1.67 | M1.7-M3.5 | M1.4-M2.9 | #0& #1 | |
PS31SBL | 1000 | 355 | 207 | 34 | 1.0-10 | 12 | ±3 | 1.67 | M1.7-M3.5 | M1.4-M2.9 | #0& #1 | |
PS32SBL | 1400 | 355 | 207 | 34 | 1.0-10 | 12 | ±3 | 1.67 | M1.7-M3.5 | M1.4-M2.9 | #0& #1 | |
PS33SBL | 650 | 355 | 207 | 34 | 1.0-10 | 12 | ±3 | 1.67 | M1.7-M3.5 | M1.4-M2.9 | #0& #1 | |
PS41SBL | 1000 | 355 | 207 | 34 | 3.0-17 | 12 | ±3 | 1.67 | M2.5-M4.3 | M2.0-M3.4 | #2 | |
PS42SBL | 1400 | 355 | 207 | 34 | 3.0-17 | 12 | ±3 | 1.67 | M2.5-M4.3 | M2.0-M3.4 | #2 | |
PS45SBL | 450 | 355 | 207 | 34 | 5.0-25 | 12 | ±3 | 1.67 | M2.8-M4.8 | M2.3-M3.8 | #2 | |
PS51SBL | 1000 | 355 | 207 | 34 | 5.0-30 | 12 | ±3 | 1.67 | M2.8-M5.0 | M2.3-M4.1 | #2 | |
PS52SBL | 2000 | 355 | 207 | 34 | 5.0-20 | 12 | ±3 | 1.67 | M2.8-M4.5 | M2.3-M3.5 | #2 | |
