| Model | No-Load Speed | Weight | Overall Length | Height | Diameter | Max Fastening Capacity | Min Hose Diameter | Air Consumption | Max Torque | Chuck Size |
| A39DPN | 1,600 r.p.m. | 0.7 kg | 165 mm | 142 mm | 36 mm | 5 mm | 5.0 mm | 0.28 m³/min | 5.0 Nm | 1/4" |
| A45DPN | 750 r.p.m. | 0.7 kg | 165 mm | 142 mm | 36 mm | 6 mm | 5.0 mm | 0.28 m³/min | 7.0 Nm | 3/8" |
| A48DPN | 1,700 r.p.m. | 1.05 kg | 214 mm | 154 mm | 43 mm | 6 mm | 8.0 mm | 0.55 m³/min | 7.0 Nm | 3/8" |
| A58DPN | 750 r.p.m. | 1.05 kg | 214 mm | 154 mm | 43 mm | 7 mm | 8.0 mm | 0.55 m³/min | 13.0 Nm | 3/8" |
| A62DPN | 750 r.p.m. | 1.05 kg | 214 mm | 154 mm | 43 mm | 7 mm | 8.0 mm | 0.55 m³/min | 13.0 Nm | 1/2" |
★ [Customization] Custom specifications can be made to customer requirements. Please contact us for details.
▼Tool Features
1. Dedicated Chuck: Easily interchanges screwdriver and drill bits, offering a convenient 3-in-1 function for drilling, screw fastening, and tapping.
2. Patented Low-Vibration Clutch.

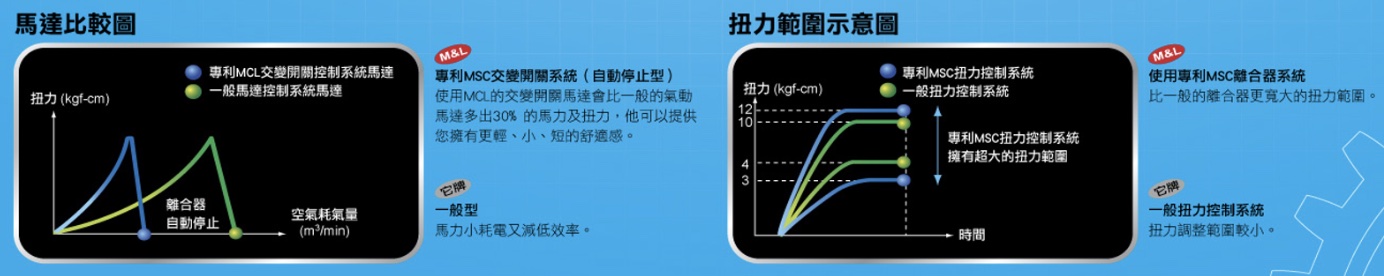

3. High-tech patented AC motor: Utilizing a patented second-generation MCL semi-automatic alternating current switch control system, this motor delivers 40% more horsepower and torque than other brands' standard motors, resulting in significantly higher work efficiency.
4. Comfort: Featuring a pioneering ergonomic dual-color grip, it offers both ergonomic anti-slip properties and a pleasing visual appearance, providing optimal balance and a comfortable hold.
5. The body utilizes an ergonomic grip made of a special new material, making it 25%~44% lighter than comparable models.
6. Employing a new integrated mute design, it is both aesthetically pleasing and achieves low noise levels.
| 型號 | 無載轉速 | 重量 | 總長 | 高度 | 直型 | 最大鎖附能力 | 最小管徑 | 耗氣量 | 最大扭力 |
| rpm | kg | mm | mm | mm | mm | m³/min | m³/min | Nm | |
| A39BPD | 1600 | 0.5 | 140 | 142 | 36 | 5 | 5.0 | 0.28 | 5.0 |
| A45BPD | 750 | 0.5 | 140 | 142 | 36 | 6 | 5.0 | 0.28 | 7.0 |
| A48BPD | 1700 | 0.73 | 159 | 154 | 43 | 6 | 8.0 | 0.55 | 7.0 |
| A58BPD | 750 | 0.73 | 159 | 154 | 43 | 7 | 8.0 | 0.55 | 13.0 |
